CONTINUOUS TIME FILTER
The Continuous Time Filter (CTF) provides pulse shaping of the input signal by means of boost control, frequency cutoff, and asymmetry control. The CTF topology is a 7th-order Bessel filter, implemented with 3 bi-quads and one Gmc cell. The user can program the cutoff frequency from 6 to 30MHz setting the corner frequency of the filter. Boost capability equalizes the amplitude across the frequency of interest, and can be used for a extension of bandwidth, as well as pulse slimming. Boost can be set with symmetry or with asymmetry. The symmetry does not affect the phase, but the asymmetry allows +/-30% phase adjustment. The filter is tuned to allow for flat group delay.
FEATURES
- 7th-order Bessel Filter
- 2 independently controlled zeroes
- Flat Group Delay +/- 5% up to 1.5* Fc, without boost
- Programmable Boost: 0 to 10dB
- Programmable Asymmetry: +/- 30%
- Programmable Cut-off: 6-30MHz total range

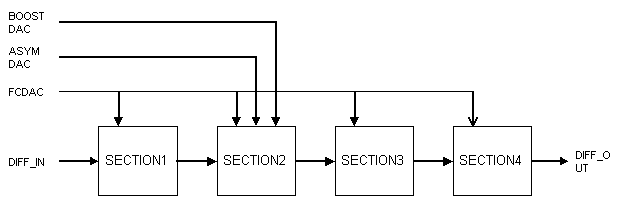

SYSTEM OVERVIEW
